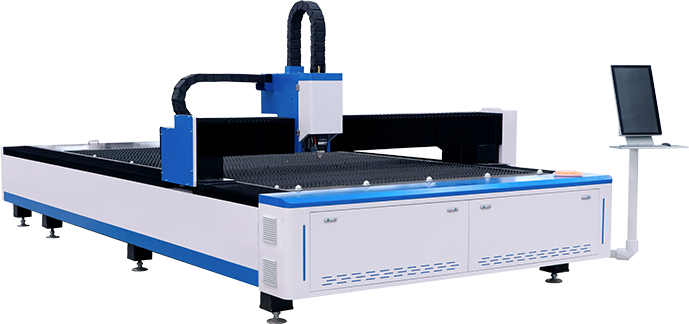

L Series

Single-Platform Laser Sheet Cutting Machine

Supporting Materials

Carbon Steel, Stainless Steel, Aluminum Alloy, Copper and Copper Alloys, Titanium and Titanium Alloys, Galvanized Steel Sheet, etc.

Machine Model

L3015 / L4015 / L4020 / L6020 / L6025 / L8025 / L13025

Laser Power

1500W 2000W 3000W 6000W

Application Fields

International Certifications

Consult Now

Advantages of the equipment

01High Stability

Integrally welded machine bed (annealed / aged treatment), featuring high rigidity and long term dimensional stability.

02High Speed & Efficiency

High rapid traverse speed (>=140m/min) and large acceleration (1.2G), enabling fast thin-sheet flying cutting.

03Small Footprint & High Precision

Integrated compact design, low site requirements, flexible movement, and high precision.

04Intelligent & User-Friendly

Bus-based CNC system + auto-focus cutting head, ensuring simple operation.

Main Configuration

Boci BLT4 laser cutting head

Raycus laser

CypCut control system

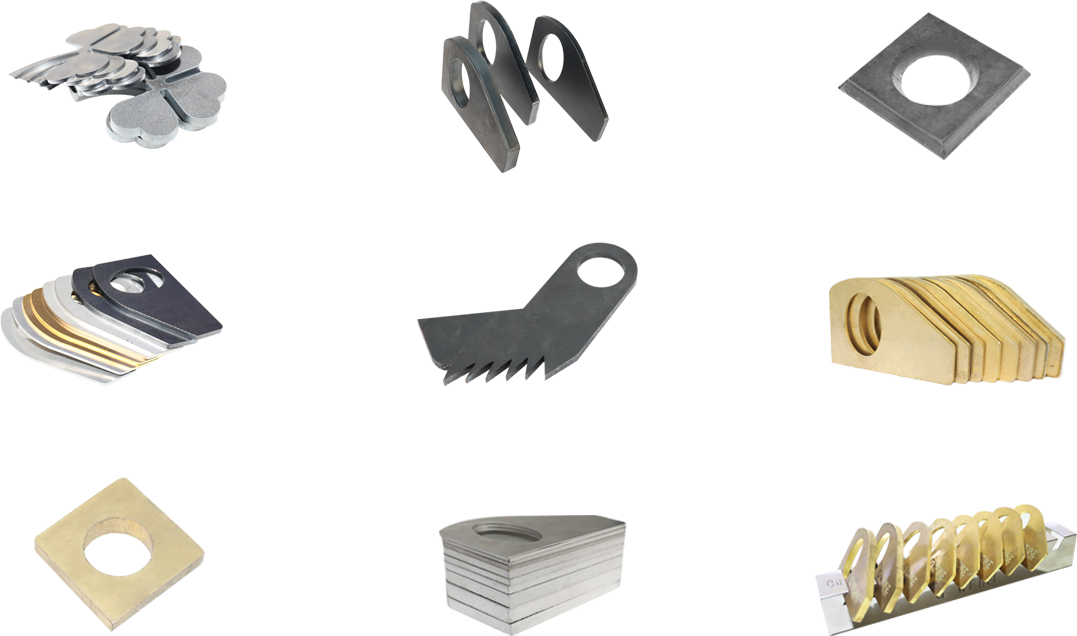

Sample Display

Applications

Construction Machinery

Enclosures and Cabinets

Kitchenware

Sheet Metal Fabrication

Elevator Components

Automotive Manufacturing

Technical Parameters

Machine Model	L3015 / L4015 / L4020 / L6020 / L6025 / L8025 / L13025
Laser Power	1500W /2000W /3000W /6000W
Maximum Z-axis Travel	150mm
XY Axis Positioning Accuracy	±0.03mm
XY Axis Repeat Positioning Accuracy	±0.02mm
Maximum simultaneous positioning speed of X and Y axes	150m/min
Maximum Positioning Speed of X and Y axes	120m/min
Laser Wavelength	1064nm
Maximum Acceleration	1.5G
