01Multi-function, Precision Machining
One machine meets the dual requirements of deburring and chamfering, handling various processes such as surface deburring and chamfering around holes and slots, truly delivering all-in-one functionality.

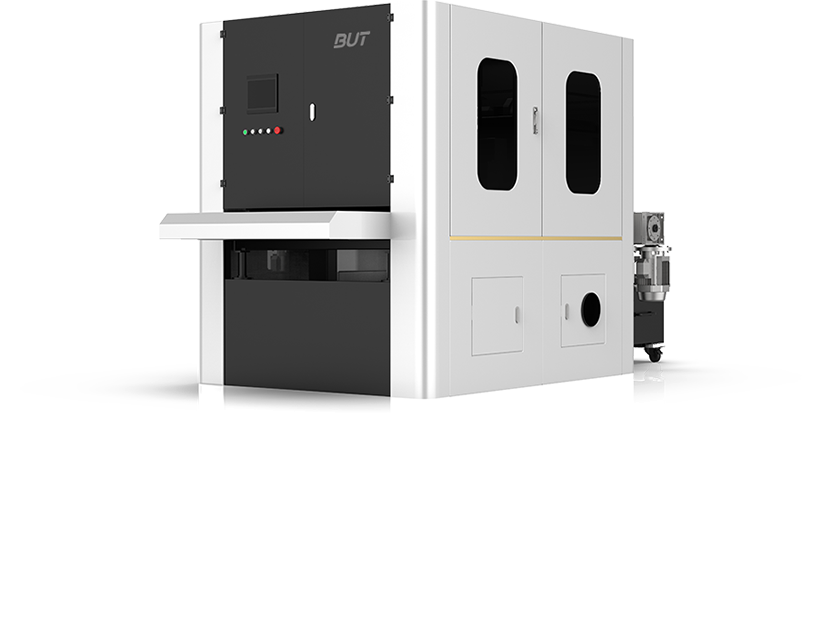

Deburring and
Chamfering Machine
Efficient Deburring · Precision Chamfering ·
Surface Finishing
Supporting Materials
Carbon Steel, Galvanized Steel Sheet, Stainless Steel, Silicon Steel Sheet, Aluminum Alloy, Electrolytic Zinc Coated Steel Sheet, Brass
Overall Dimensions
2270mm*1760mm*2027mm (L×W×H)
Application Fields
International Certifications
Advantages of the equipment
02Wide Applicability
It can easily process common materials including carbon steel, stainless steel and aluminum alloy, as well as special materials such as brass, red copper, pickled plate, galvanized plate, silicon steel plate, electrolytic plate, titanium alloy and manganese alloy.
03Stable Operation
Dual abrasive belt and chamfering structure, equipped with high-efficiency transmission components such as precision reducers, gears and screw shaft bearings for stable heavy-load operation.
04Intelligent and Powerful
Equipped with a PLC intelligent control system integrating automatic detection, convenient operation, automatic grinding and fault alarm functions. One-key start reduces the operating threshold.
Sample Display
Applications
Technical Parameters
| Processing Thickness | 1-60MM |
|---|---|
| Worktable | Magnetic suction + negative pressure (Optional) |
| Processing Workpiece Width | 1000MM |
| Abrasive Belt Size | 2230*1300 |
| Feeding Speed | 0-16m/min |
| Rubber Roller Diameter | Diameter 190MM |
| Auxiliary driven roller bearing | TR |
| Control System | PLC + Touch Screen |
| Processing Length | 120MM |
| Number of Abrasive Belts | 2 |
| Total Machine Power | 36KW |
| Overall Dimensions | 2027*1907*2200MM |
| Adjustment Method | Touch Screen PLC |
| Total Machine Weight | Approx. 3.5 Tons |
