01High Stability
Machine body optimized through finite element design, stress-relieved through annealing treatment to ensure strong steel properties and structural stability.

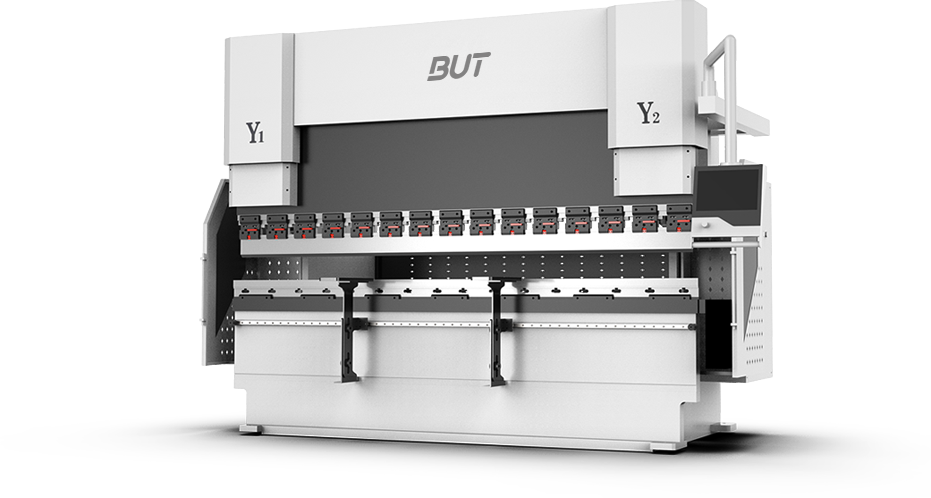

CNC Bending Machine
Meeting Batch Precision Bending
Requirements from Simple
Bending to Complex Forming
Supporting Materials
Carbon Steel, Stainless Steel, Aluminum Alloy, Copper and Copper Alloys, Titanium and Titanium Alloys, Galvanized Steel Sheet, etc.
Overall Dimensions
3700mm*1955mm*2650mm(L×W×H)
Nominal Pressure
1000kN 1500kN 1700kN 2000kN
Application Fields
International Certifications
Advantages of the equipment
02High-Precision Bending
Hydraulic servo system combined with international standard detection components ensures high synchronization control accuracy, guaranteeing high bending and repeat positioning precision.
03Netherlands DELEM DA-53T CNC System
Utilizes the powerful and user-friendly Netherlands DELEM DA-53T CNC system, capable of automatically calculating total material length for bending workpieces and enabling 2D touch-based graphic programming.
04Mechanical Deflection Compensation System
The system calculates the required compensation for the upper and lower beams based on the load force during bending, and automatically controls the relative movement of the wedges. This effectively compensates for deformation and enables more precise accuracy control.

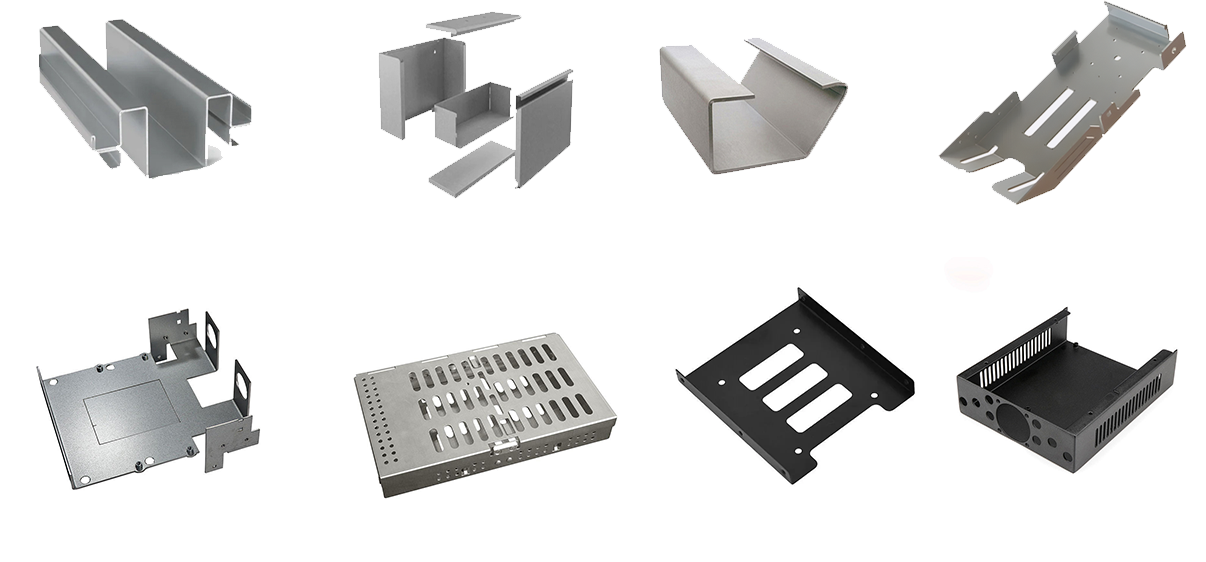

Sample Display
Applications
Technical Parameters
| Machine model | 10032 | 15032 | 17032 | 20032 |
|---|---|---|---|---|
| Nominal pressure | 1000 | 1500 | 1700 | 2000 |
| Working length | 3200 | 3200 | 3200 | 3200 |
| Column spacing | 2600 | 2600 | 2600 | 2600 |
| Maximum opening height | 480 | 480 | 480 | 480 |
| Slider stroke | 200 | 200 | 200 | 200 |
| Throat depth | 400 | 400 | 400 | 400 |
| Bending Rapid down | 180 | 180 | 180 | 150 |
| Work | 10 | 10 | 10 | 9 |
| Return trip | 160 | 160 | 160 | 130 |
| Main motor power | 7.5 | 11 | 15 | 18.5 |
| X axis travel X | 500 | 500 | 500 | 500 |
| X axis speed X | 500 | 500 | 500 | 500 |
| R axis travel R | 200 | 200 | 200 | 200 |
| R axis speed R | 60 | 60 | 60 | 60 |
