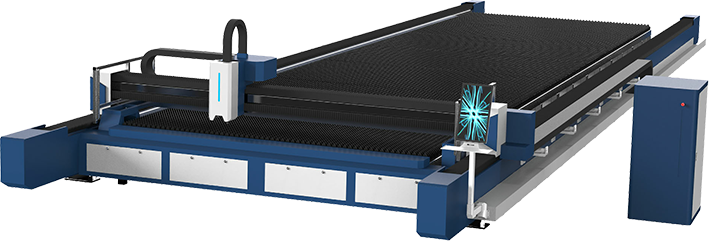

D Series

Gantry Ground Rail
Laser Sheet Cutting Machine

Supporting Materials

Carbon Steel, Stainless Steel, Aluminum Alloy, Copper and Copper Alloys, Titanium and Titanium Alloys, Galvanized Steel Sheet, etc.

Machine Model

D-3015 / D-4015 / D-4020 / D-6025 / D-8025 / D-13025

Laser Power

3000W 6000W 12000W 20000W

Application Fields

International Certifications

Consult Now

Advantages of the equipment

01Wider processing range

Suitable for ultra-long workpieces, suitable for medium and thick plates such as carbon steel, stainless steel and aluminum alloy, as well as ultra-long structural parts.

02Lower renovation cost

Dual-drive servo + high precision guide rails; compatible with existing flame/plasma foundations, low renovation cost.

03Flexible capacity expansion

Zoned dust removal, fast cutting speed with high power, and expandable modules such as bevel cutting and robotic arm loading & unloading.

Main Configuration

YYC rack

Raycus laser

HIWIN linear guide rail

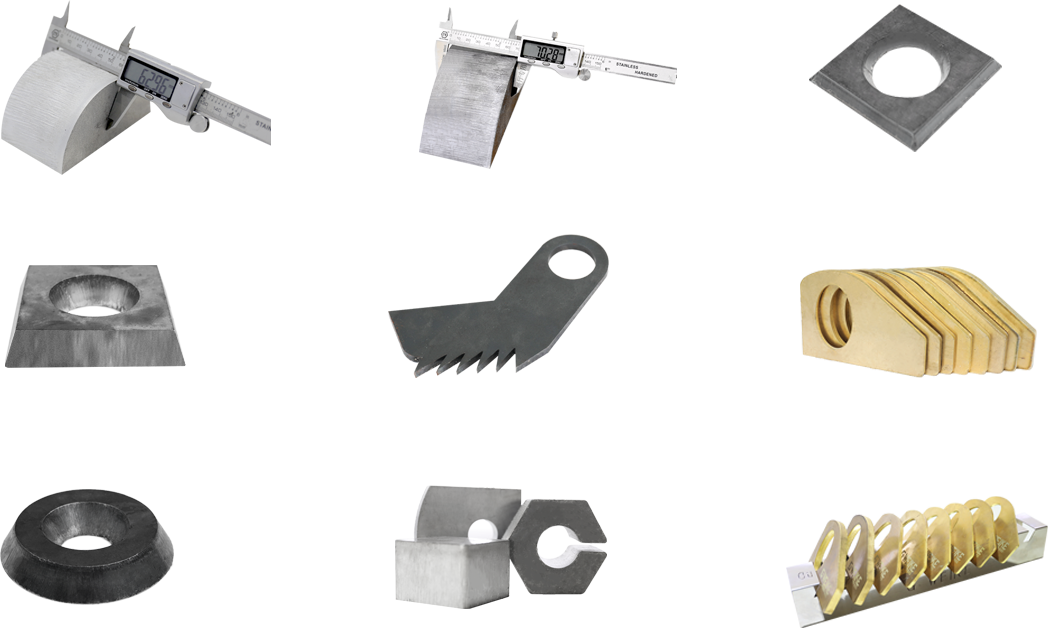

Sample Display

Applications

Construction Machinery

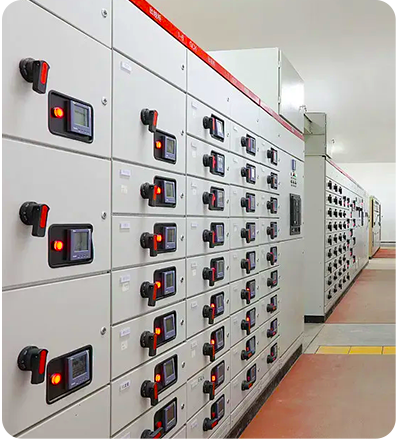

Enclosures and Cabinets

Kitchenware

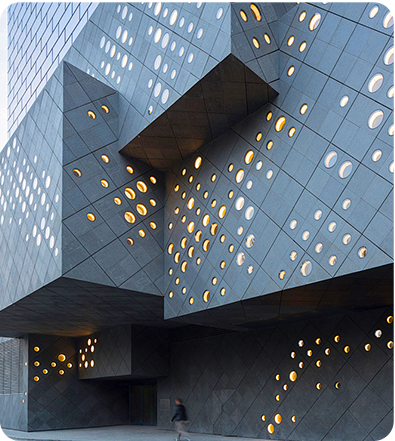

Sheet Metal Fabrication

Elevator Components

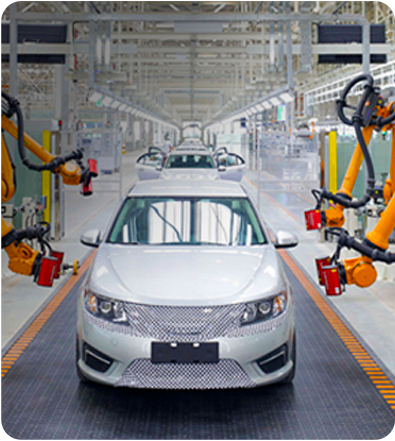

Automotive Manufacturing

Technical Parameters

Machine Model	D-3015/D-4015/D-4020/D-6025/D-8025/D-13025
Laser Power	3000W /6000W /12000W /20000W
Maximum Z-axis Travel	150mm
XY Axis Positioning Accuracy	±0.03mm
XY Axis Repeat Positioning Accuracy	±0.02mm
Maximum simultaneous positioning speed of X and Y axes	150m/min
Maximum Positioning Speed of X and Y axes	120m/min
Laser Wavelength	1064nm
Maximum Acceleration	1.5G
