A Series

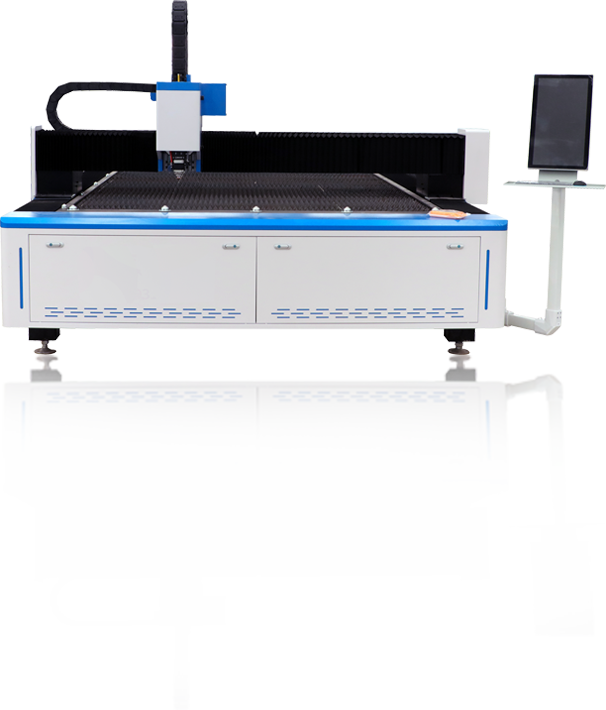

Exchange-Platform Laser Sheet Cutting Machine

Supporting Materials

Carbon Steel, Stainless Steel, Aluminum Alloy, Copper and Copper Alloys, Titanium and Titanium Alloys, Galvanized Steel Sheet, etc.

Machine Model

A-3015 / A-4015 / A-4020 / A-6020 / A-8025 / A-13025

Laser Power

1500W 2000W 3000W 6000W

Application Fields

International Certifications

Consult Now

Advantages of the equipment

01High Automation & Easy Operation

Cutting and loading/unloading processes are carried out simultaneously. The machine boasts a high level of automation and is easy to operate.

02Rapid Table Exchange, Mass Production

With fast table exchange speed, it is suitable for high-volume continuous sheet metal processing.

03Strong Rigidity, Constant Cutting Precision

The machine features strong overall rigidity and stable structure, ensuring consistent cutting accuracy during long hour operation.

Main Configuration

Inovance servo motor

Raycus laser

CypCut system

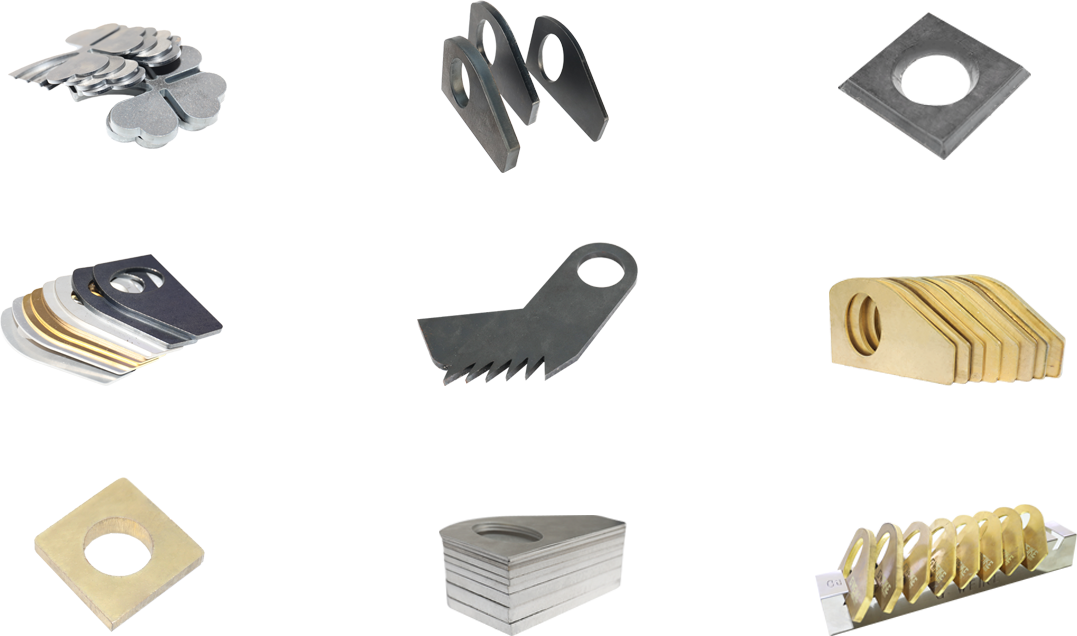

Sample Display

Applications

Construction Machinery

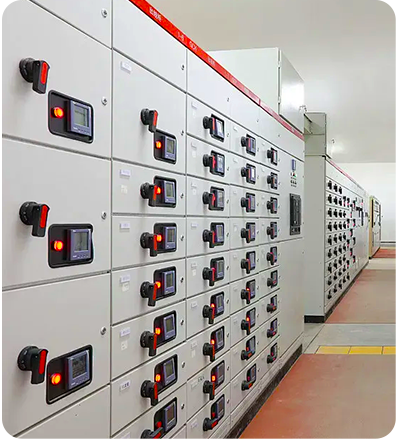

Enclosures and Cabinets

Kitchenware

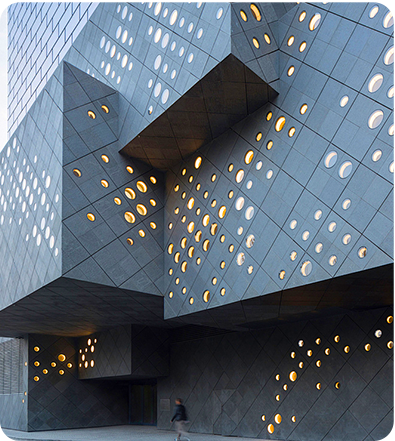

Sheet Metal Fabrication

Elevator Components

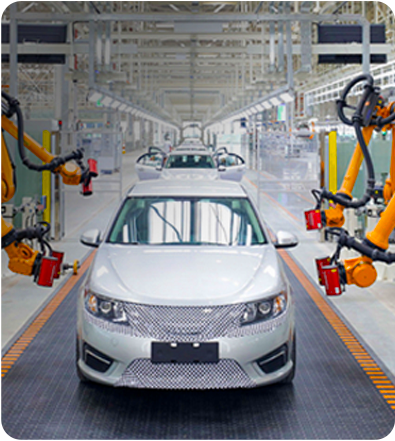

Automotive Manufacturing

Technical Parameters

Machine Model	A-3015 / A-4015 / A-4020 / A-6020 / A-8025 / A-13025
Laser Power	1500W /2000W /3000W /6000W
Maximum Z-axis Travel	150mm
XY Axis Positioning Accuracy	±0.03mm
XY Axis Repeat Positioning Accuracy	±0.02mm
Maximum simultaneous positioning speed of X and Y axes	150m/min
Maximum Positioning Speed of X and Y axes	120m/min
Laser Wavelength	1064nm
Maximum Acceleration	1.5G

Get a Quote
Today

Leave your basic information, and we will contact you as soon as possible to provide detailed information and a quote.
