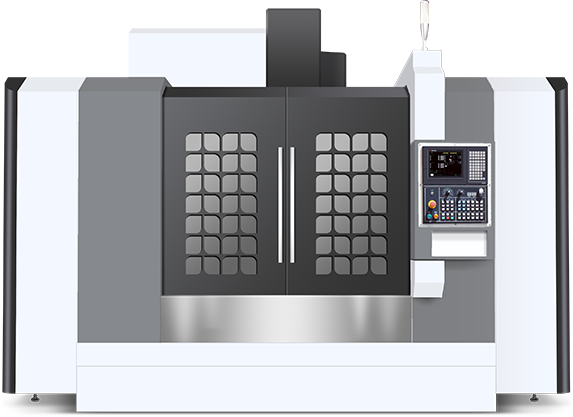

VMC Series
After single clamping, the workpiece can undergo multiple processes such as vertical milling, drilling, boring, reaming, and tapping in a centralized manner, improving machining efficiency while reducing workpiece handling and re-clamping errors.
Three-axis rapid traverse rate can reach up to 32/32/24 m/min (depending on model), significantly improving machining efficiency. The standard tool magazine is a 24-tool disc type, with a tool change time of only 2.5 seconds, supporting sequential tool change and shortest-path tool selection.
Equipped with an automatic chip conveyor and cooling system, enabling automatic chip collection and coolant recycling.
Includes a fully enclosed protective cover, operation door interlock, emergency stop button, and warning light, providing comprehensive protection to ensure operational safety.
| Item | VMC1890 | VMC1690 | VMC1580 | VMC1200 双刀库 | VMC1370 |
|---|---|---|---|---|---|
| Worktable Size (MM) | 2000×900 | 1600×800 | 1700×800 | 1200×600 | 1400×700 |
| Maximum Permissible Load (KG) | 1600 | 1500 | 1500 | 800 | 800 |
| T-Slot Size (MM / Qty) | 5-22-165 | 7-22-110 | 5-22-135 | 5-18-100 | 5-18-130 |
| X-Axis Travel (MM) | 1800 | 1600 | 1500 | 1200 | 1300 |
| Y-Axis Travel (MM) | 900 | 900 | 800 | 650 | 700 |
| Z-Axis Travel (MM) | 600 | 700 | 700 | 600 | 750 |
| Rapid Traverse Speed X/Y/Z (M/MIN) | 20×20×15 | 20×20×14 | 20×20×14 | 24×24×16 | 24×24×18 |
| Feed Rate (MM/MIN) | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Taper Bore (7:24) | BT 50 φ190 | BT 50 φ190 | BT 50 φ155 | BT 40 φ150 | BT40 φ150 |
| Speed Range (R/MIN) | 6000 | 6000 | 6000 | 8000 | 8000 |
| Spindle Motor Power (KW) | 18 | 15 | 15 | 15 | 15 |
| Tool Magazine Capacity (Units) | 24 | 24 | 24 | 24*2 | 24 |
| Approximate Gross Machine Weight (KG) | 14000 | 12000 | 12000 | 7000 | 8000 |
| Item | VMC1270 | VMCL1165 | VMC1160 | VMC855P | VMC855 | VMC650 |
|---|---|---|---|---|---|---|
| Bed Maximum Swing Diameter (MM) | 1360×700 | 1200×600 | 1200×600 | 1000×550 | 1000×550 | 1000×400 |
| Maximum Cutting Length (MM) | 1000 | 800 | 800 | 500 | 500 | 400 |
| Maximum Cutting Diameter (MM) | 5-18-122 | 5-18-100 | 5-18-100 | 5-18-90 | 5-18-90 | 3-18-120 |
| Standard Cutting Diameter (MM) | 1200 | 1100 | 1100 | 800 | 800 | 650 |
| Spindle Specification | 700 | 650 | 600 | 550 | 550 | 400 |
| Spindle Bore Diameter (MM) | 600 | 600 | 600 | 550 | 550 | 550 |
| Maximum Bar Capacity (MM) | 20×20×14 | 24×24×16 | 24×24×18 | 32×32×24 | 32×32×24 | 32×32×24 |
| Maximum Spindle Speed / Torque (rpm/N*m) | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 | 1-10000 |
| Spindle Power (KW) | BT 50 φ155 | BT 40 φ150 | BT 40 φ150 | BT40-150 | BT40-150 | BT40-120 |
| Chuck Diameter (INCH) | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| Y-Axis Travel (MM) | 15 | 15 | 11 | 11 | 7.5 | 5.5 |
| Live Tool Turret Specification (12 Stations) | 24 | 24 | 24 | 24 | 24 | 24 |
| Approximate Gross Machine Weight (KG) | 9500 | 7000 | 6500 | 5500 | 5300 | 3800 |
Leave your basic information, and we will contact you as soon as possible to provide detailed information and a quote.
