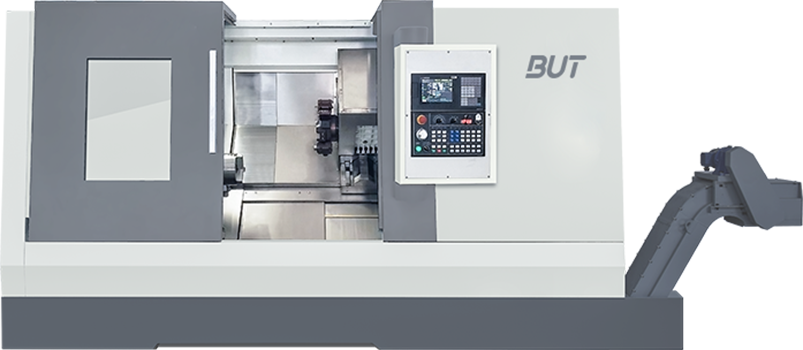

TCKY Series
Integrates multiple functions including turning, milling, drilling, tapping, straight slotting, helical slotting, and gear milling, reducing workpiece handling and re-clamping errors, significantly improving efficiency and accuracy.
Roundness <= 0.0025 mm (at φ75), Cylindricity <= 0.010 mm (over 150 mm length), Surface Roughness Ra <= 1.25 μm, and machining accuracy up to IT6 grade, meeting the high-precision requirements of industries such as aerospace, military, and automotive.
Made of high-grade cast iron with FEA-optimized structure, providing good rigidity and strong vibration absorption. Equipped with 35-mm precision linear ball guideways, offering four-direction equal load capacity and high deformation resistance.
Features interlock protection against overcurrent and short circuits. Operators and maintenance personnel can monitor the operating status of various machine components at any time via indicator lights and operator panels, ensuring safe and convenient operation.
| Item | TCK56Y | TCK56Y-1000 | TCK600Y | TCK600Y-1000 | TCK70Y-2000 |
|---|---|---|---|---|---|
| Bed Maximum Swing Diameter (MM) | 560 | 560 | 600 | 600 | 720 |
| Maximum Cutting Length (MM) | 400 | 930 | 500 | 1000 | 2000 |
| Maximum Cutting Diameter (MM) | 300 | 300 | 430 | 430 | 480 |
| Standard Cutting Diameter (MM) | 240 | 240 | 340 | 340 | 360 |
| Spindle Specification | A2-6 | A2-6 | A2-6 | A2-6 | A2-8 |
| Spindle Bore Diameter (MM) | 65 | 65 | 65 | 65 | 85 |
| Maximum Bar Capacity (MM) | 50 | 50 | 50 | 50 | 75 |
| Maximum Spindle Speed / Torque (rpm/N*m) | 4500/144 | 4500/144 | 4500/144 | 4500/144 | 3000/283 |
| Spindle Power (KW) | 30 | 30 | 30 | 30 | 37 |
| Chuck Diameter (INCH) | 8 | 8 | 8 | 8 | 10 |
| Y-Axis Travel (MM) | 30/-30 | 30/-30 | 50/-50 | 50/-50 | 75/-75 |
| Live Tool Turret Specification (12 Stations) | BT40 | BT40 | BMT55 | BMT55 | BMT55 |
| Approximate Gross Machine Weight (KG) | 3600 | 4500 | 4500 | 5400 | 9000 |
| Item | TCK70Y-3000 | TCK2100LY | TCK3100LY | TCK600SY | TCK3100SY |
|---|---|---|---|---|---|
| Bed Maximum Swing Diameter (MM) | 720 | 650 | 750 | 600 | 6750 |
| Maximum Cutting Length (MM) | 3000 | 500 | 1000 | 500 | 1000 |
| Maximum Cutting Diameter (MM) | 480 | 350 | 500 | 350 | 500 |
| Standard Cutting Diameter (MM) | 420 | 290 | 380 | 300 | 380 |
| Spindle Specification | A2-8 | A2-6 | A2-8 | A2-6/A2-5 | A2-8/A2-6 |
| Spindle Bore Diameter (MM) | 85 | 65 | 85 | 65 | 85 |
| Maximum Bar Capacity (MM) | 75 | 50 | 75 | 50 | 75 |
| Maximum Spindle Speed / Torque (rpm/N*m) | 3000/283 | 4500/143 | 3000/283 | 4500/144-5000/42 | 3000/283-4000/144 |
| Spindle Power (KW) | 37 | 30 | 37 | 30/11 | 37/30 |
| Chuck Diameter (INCH) | 10 | 10 | 10 | 8/6 | 10/8 |
| Y-Axis Travel (MM) | 75/-75 | 50/-50 | 100/-100 | 50/-50 | 100/-100 |
| Live Tool Turret Specification (12 Stations) | BMT55 | BMT55 | BMT65 | BMT55 | BMT65 |
| Approximate Gross Machine Weight (KG) | 11000 | 4000 | 9000 | 4800 | 9500 |
